AWS Global Accelerator: Boost Your Network Performance

Want to make your network faster? AWS Global Accelerator could be the answer. It helps your apps reach users faster, making them more reliable and quick.


Global Accelerator speeds up your network. It gives you fixed entry points to your apps. This means easier access to your servers and websites.


What is AWS Global Accelerator?

AWS Global Accelerator makes your apps reach users faster, no matter where they are. It uses over 400 points of presence worldwide. This cuts down on wait times and makes your apps run smoother.


How Global Accelerator improves network performance

It sends traffic to the nearest edge spot, then to the closest AWS place over our network. This cuts down on delays and jitter. It keeps connections alive for TCP at 340 seconds and UDP at 30 seconds, helping apps work better.

Feature

Benefit

Static IP addresses

Simplified DNS management

Anycast routing

Reduced latency and improved reliability

Health monitoring

Automatic traffic redirection for high availability

DDoS protection

Enhanced security for AWS origins

Benefits of AWS Global Accelerator

  1. It makes your app faster by cutting down on the distance data travels.

  2. It keeps your app up and running by automatically switching to healthy endpoints.

  3. It makes sure your users don’t notice changes in your app’s setup.

  4. It lets you serve users worldwide with a consistent experience.


Practical Session: Setting Up AWS Global Accelerator

Prerequisites:

  • An AWS account

  • Applications or services deployed in one or more AWS regions

  • Access to AWS Management Console


Step 1: Create an Accelerator

  1. Log in to the AWS Management Console:

    • Navigate to the AWS Global Accelerator console.

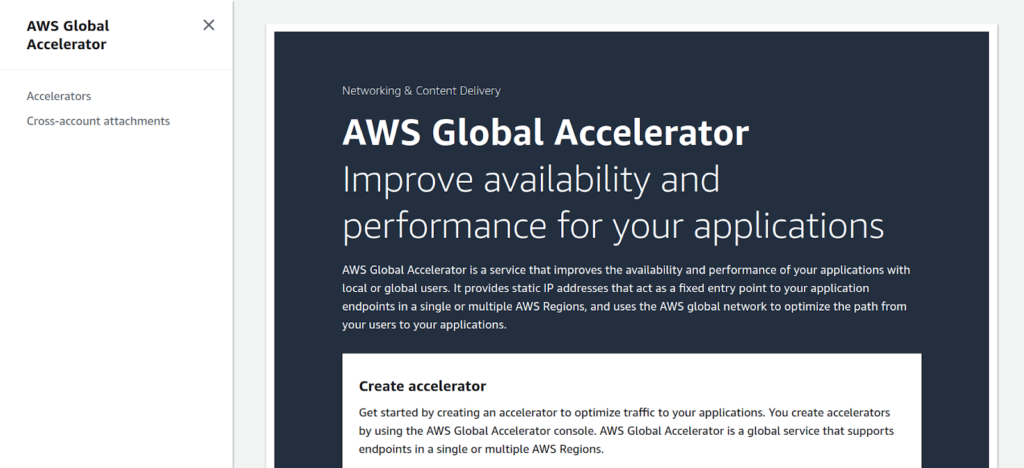

      AWS Global Accelerator

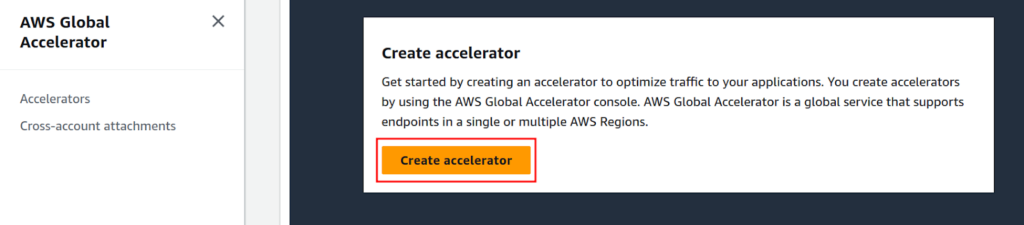

  2. Create a New Accelerator:

    • Click “Create Accelerator.”


      Create AWS Global Accelerator

    • Provide a name for your accelerator.

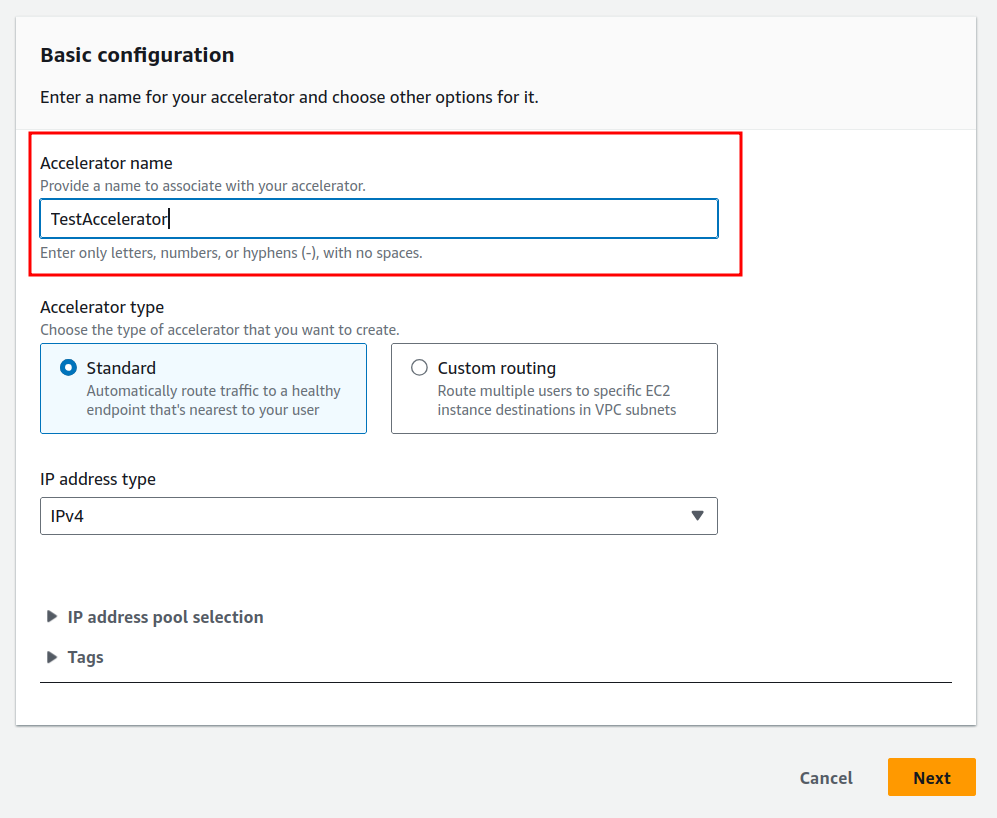

      Basic configuration of AWS Global Accelerator

    • Global Accelerator will automatically assign two static IP addresses to your accelerator.

    • Click “Next.”


Step 2: Configure the Listener

  1. Set Up a Listener:

    • Specify the listener port and protocol (e.g., HTTP, HTTPS, TCP).

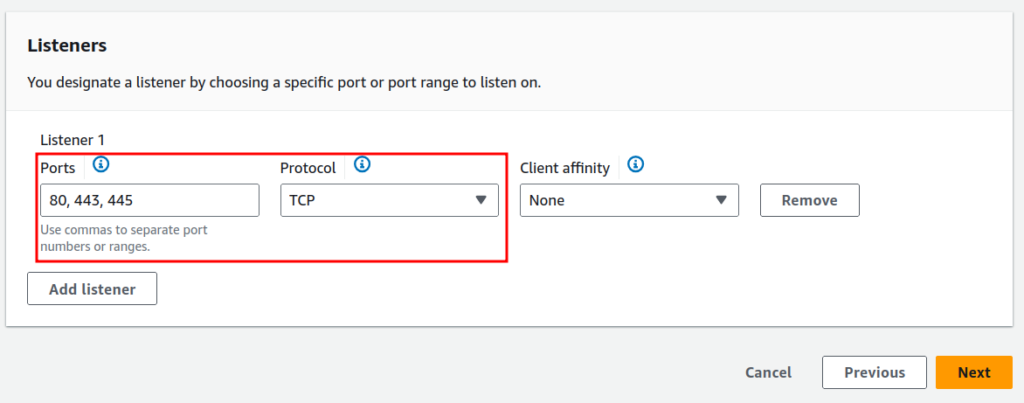

      Setup a listener

    • Client Affinity is an optional setting that determines whether requests from the same client (based on IP address or session) should be routed to the same endpoint.

      1. None: No client affinity is used. Each request from a client could be routed to a different endpoint.

      2. Source IP: All requests from the same client IP address will be routed to the same endpoint. This is useful for applications where session continuity is important.

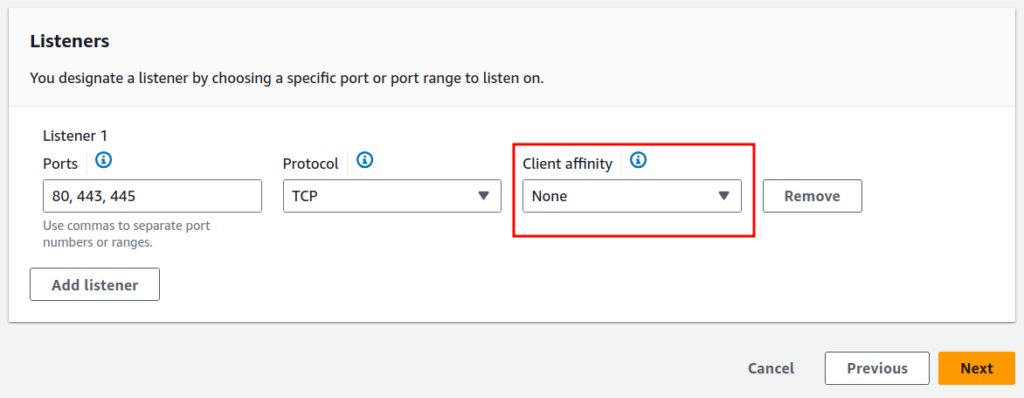

        Set client affinity

    • Click “Next.”


Step 3: Add Endpoint Groups

  1. Add Endpoint Groups:

    • Choose one or more AWS regions where your application is hosted.

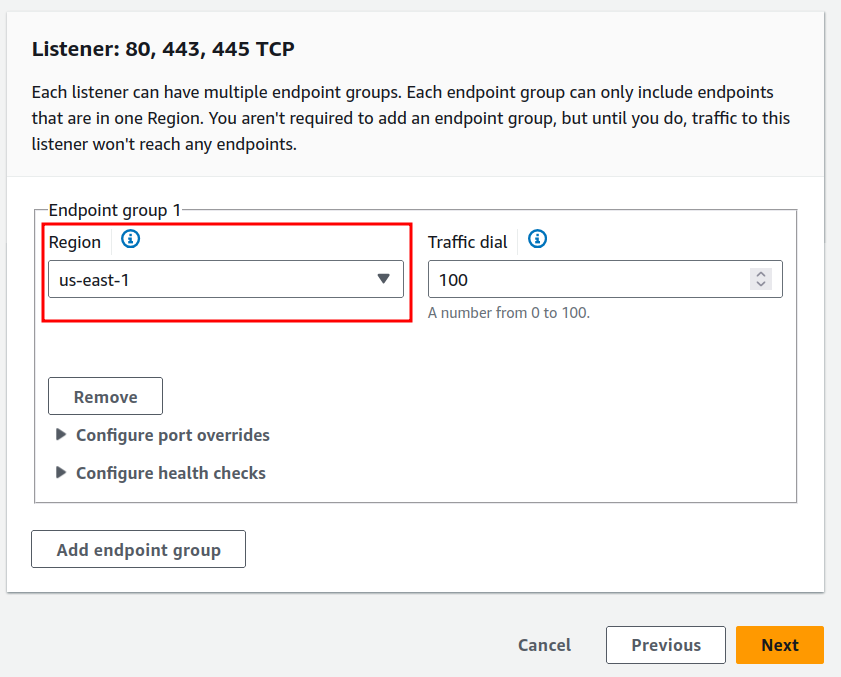

      Select region for endpoint group

    • Configure the traffic distribution among regions by setting a “traffic dial” percentage for each region. This allows you to control the proportion of traffic routed to each region.

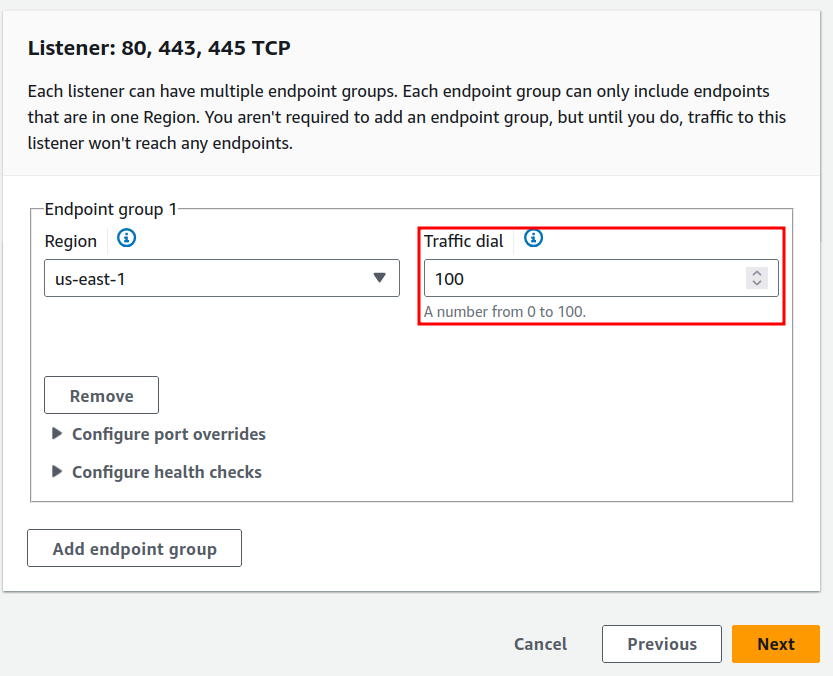

      select traffic dial for endpoint group

    • Set up health checks to monitor the health of endpoints in each region.

  2. Add Endpoints:

    • Select the specific endpoints (e.g., EC2 instances, Application Load Balancers) within each region that you want to include in your Global Accelerator setup.


      add endpoint

    • Click “Add.”

Step 4: Review and Deploy

  1. Review the Configuration:

    • Verify the creation of the accelerator.

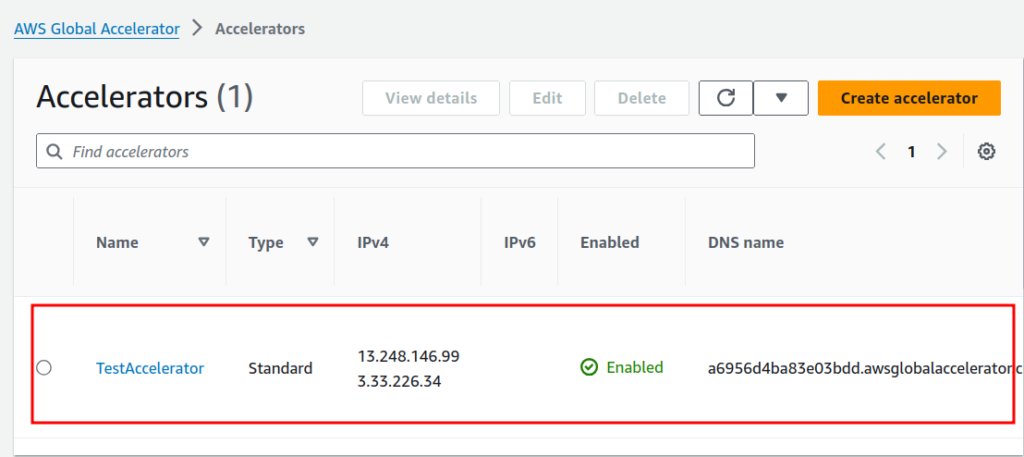

      Review the configuration for AWS Global Accelerator

    • Verify the settings for your accelerator, listener, and endpoint groups.

  2. Deploy the Accelerator:

    • The static IP addresses provided by Global Accelerator can now be used in your DNS records to direct user traffic to the accelerator.

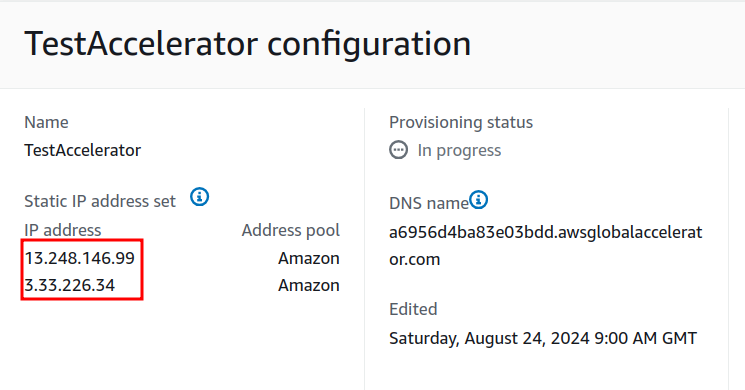

      Deploy the AWS Global Accelerator

Step 5: Monitor and Manage

  1. Monitor Performance:

    • Use the AWS Global Accelerator console to monitor traffic, health checks, and the performance of your endpoints.

    • Adjust the traffic dial as needed to optimize the user experience.

  2. Scaling and Optimization:

    • As your application grows, you can add more endpoints or regions to the accelerator.

    • AWS Global Accelerator will automatically handle the distribution of traffic to maintain optimal performance.


Conclusion

AWS Global Accelerator boosts the performance and availability of globally distributed apps. It uses the AWS global network for low latency and high availability. This ensures a consistent experience for users everywhere.


Setting up AWS Global Accelerator is easy. With the practical session, you can quickly add it to your AWS setup. This lets you enjoy its benefits right away.


FAQ

What is AWS Global Accelerator?

AWS Global Accelerator makes your public apps faster, more reliable, and secure. It does this by directing traffic through the AWS network. It uses anycast IP addresses to send traffic to the closest healthy endpoint.


How does AWS Global Accelerator improve network performance?

It uses anycast IP addresses to send traffic to the nearest healthy endpoint. This cuts down on latency. It also sends traffic to the AWS network, which is built for speed and reliability.


What are the key benefits of using AWS Global Accelerator?

The main benefits are faster performance and higher reliability. It also makes global traffic routing smoother. This reduces latency for users worldwide and boosts application security.


How does Global Accelerator differ from traditional DNS routing?

Global Accelerator works at the network level with anycast IP addresses for real-time traffic optimization. DNS routing is at the DNS level. Global Accelerator is best for apps needing consistent low latency, like video streaming or online gaming.
